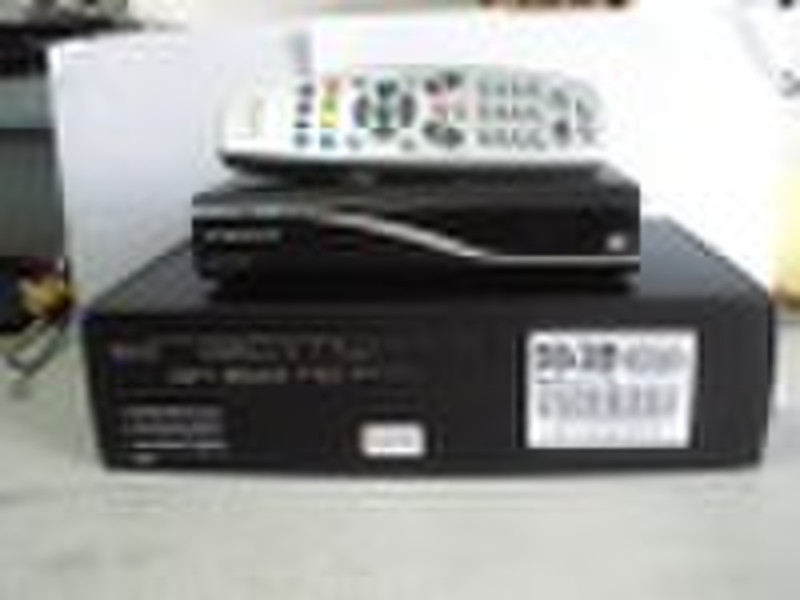

Newest Dreambox DM800HD PVR satellite receiver for

Newest Dreambox DM800HD PVRsatellite receiver for digital tv Gemini 5.1 Bootloader :76C Tuner : ver M 1Features:- 300 MHz MIPS Processor- Linux Operating System- OLED - Display- MPEG-2 / H.264 Hardware decoding- Tuner: DVB-S, optional: DVB-C, DVB-T- Tuner Module, Plug&Play- 1 x Smartcard-Reader- V.24/RS232 Interface- 10/100Mbit Ethernet Interface- 1 x Scart (RGB, FBAS or S-Video)- DVI- 2 x USB 2.0- analog modem- S/PDIF Interface for digital bit stream out (AC-3)- 64 MByte Flash, 256 MByte RAM- SATA- for use either as internal SATA HDD 2,5?- or to use for extern eSATA- unlimited channel lists for TV/Radio- channel-change time < 1 second- automatic service scan- directly bouquet-lists- EPG (electronic program guide)- multiple LNB-Switching control (supports DiSEqC)- OSD in many languages and skin-support- Videotext Decoder- extern 12V power supply2DBS-Tuner mit DVB-S2:Frequency Range ?950 .... 2150 MHzDemodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPCDVB-S2: 10 ? 31 Mbaud/s (8PSK) , 10 ?30 Mbaud/s (QPSK)3Video decoder:Video Compression MPEG-2 and MPEG-1 compatible, H.246Video Formats 4:3 / 16:9Letterbox for 4:3 TV-Device4Audio decoder:Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3Audio Mode Dual (main/sub), StereoFrequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz5Output analog:Output Level L/R 0,5 Vss on 600 OhmTHD > 60 dB (1 kHz)Crosstalk < -65 dB6Output digital:Output Level 0,5 Vss on 75 OhmSampled Data Filtering 32 kHz, 44.1 kHz, 48 kHzS/PDIF-Output optical, Toslink7Ausgang Video:Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm8Video parameter:Input Level FBAS 1 Vss +/- 0.3 dB on 75 OhmTeletext filter in conformity with ETS 300 472 Standard9TV-Scart:Output: FBAS, RGB, S-Video10Serielle Interface RS 232:Typ RS232 bidirectionalBitrate 115,2 kBit/s max.Plug Connector SUB-D-9Function: Update of Firmware11Ethernet:10/100 MBit compatible interfaceFunction: Update of Firmware12Analoge modem:analoge modem for Internet connection13SATA Interface:- for use either as internal HDD 2,5? or eSATAor internal 2,5" HDD14USB2 x USB 2.0 Host15LNB power and polarisation per tuner:LNB Current 500mA max.; short-circuit-protectedLNB Voltage vertical < 14V no load, > 11,5V at 400mALNB Voltage horizontal < 20V no?load, > 17,3V at 400mA16Count of active satellite position:DiSEqC 1.0/1.2 SAT POSITION / SAT OPTIONDiSEqC - Rotor Control17Power consumption:< 15W at?12V18External PSUInput:110-240V AC / 50-60Hz / 0,6AOutput:12V = / 3,0A19Physical specification:Ambient Temperature +15
